FEATURES:

-3 Modes of operation;

STEREO = 8 EQs for a single stereo pair. Potential uses include mastering/2bus processing.

STEREO&MONO = 4 EQs for a stereo pair and 2 EQs per 2 mono channels. Potential use might be 4xEQs on main music preamp insert and 2xEQs for 2 microphones.

MONO = 2 EQs per 4 mono channels. Potential uses include mixing, sub group processing, 4x Aux channels from preamp, makeshift 4-way crossover.

-Each EQ can be set to BELL, LOW SHELF or HIGH SHELF. Or set as a Filter with High Pass, Low Pass or Band Pass options.

-Gain control with +/-18dB for the EQ or 12/24/36/48dB/oct for the filters.

-Q control from 0.25 to 5.

-Frequency control with range switch, ranges are; 20Hz-200Hz/200Hz-2kHz/2kHz-20kHz.

-Each pair of EQs has a +/-18dB gain compensation control that is only active if at least one of the EQs are active, to allow for vast EQ cut/boosts without vast volume changes.

-Input and output clip LED indicators per channel.

-Brushed stainless steel box with durable front/rear panels, available in the full Sage colour range and knob colour choices.

CONNECTIONS:

-4xAnalog XLR inputs and outputs, balanced.

-AES/EBU input and output.

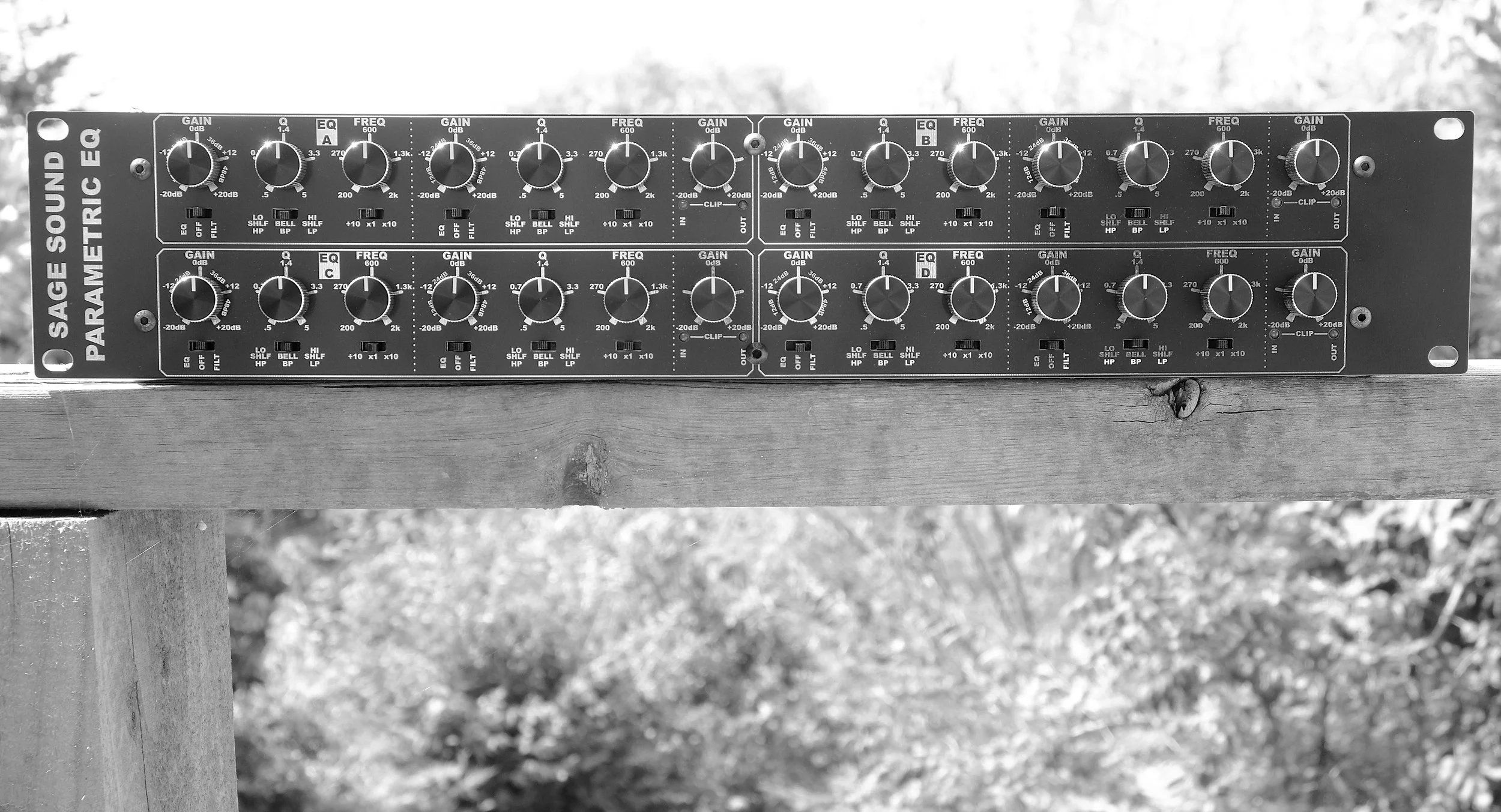

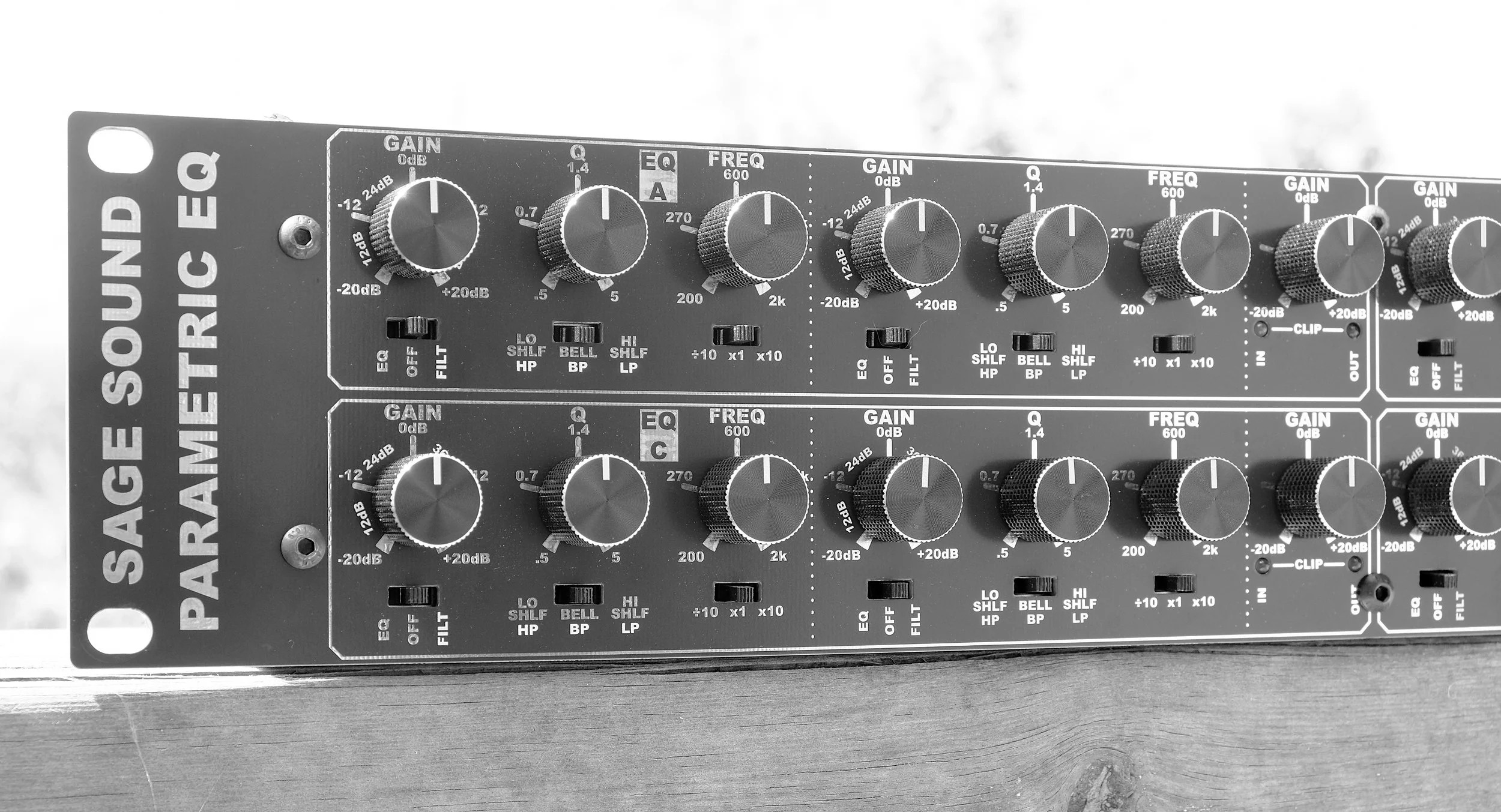

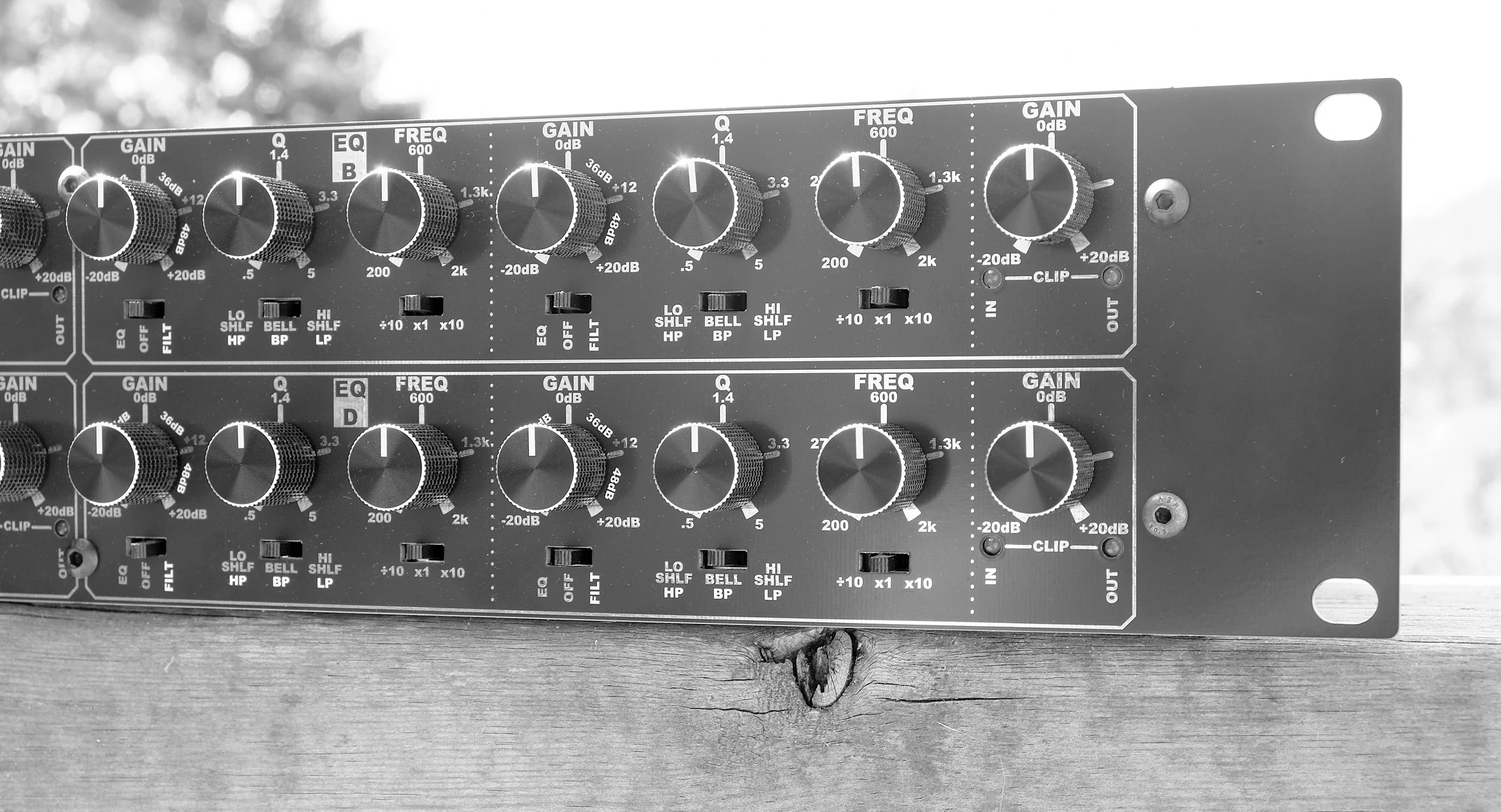

CHANGES TO MODEL SHOWN IN PHOTOS:

-Colour will be the normal black and gold text +colour variants. See Bass Thing Mk2 page for accurate photo of colours.

-Gain range is +/-18dB.

-Q range is 0.25 to 5.

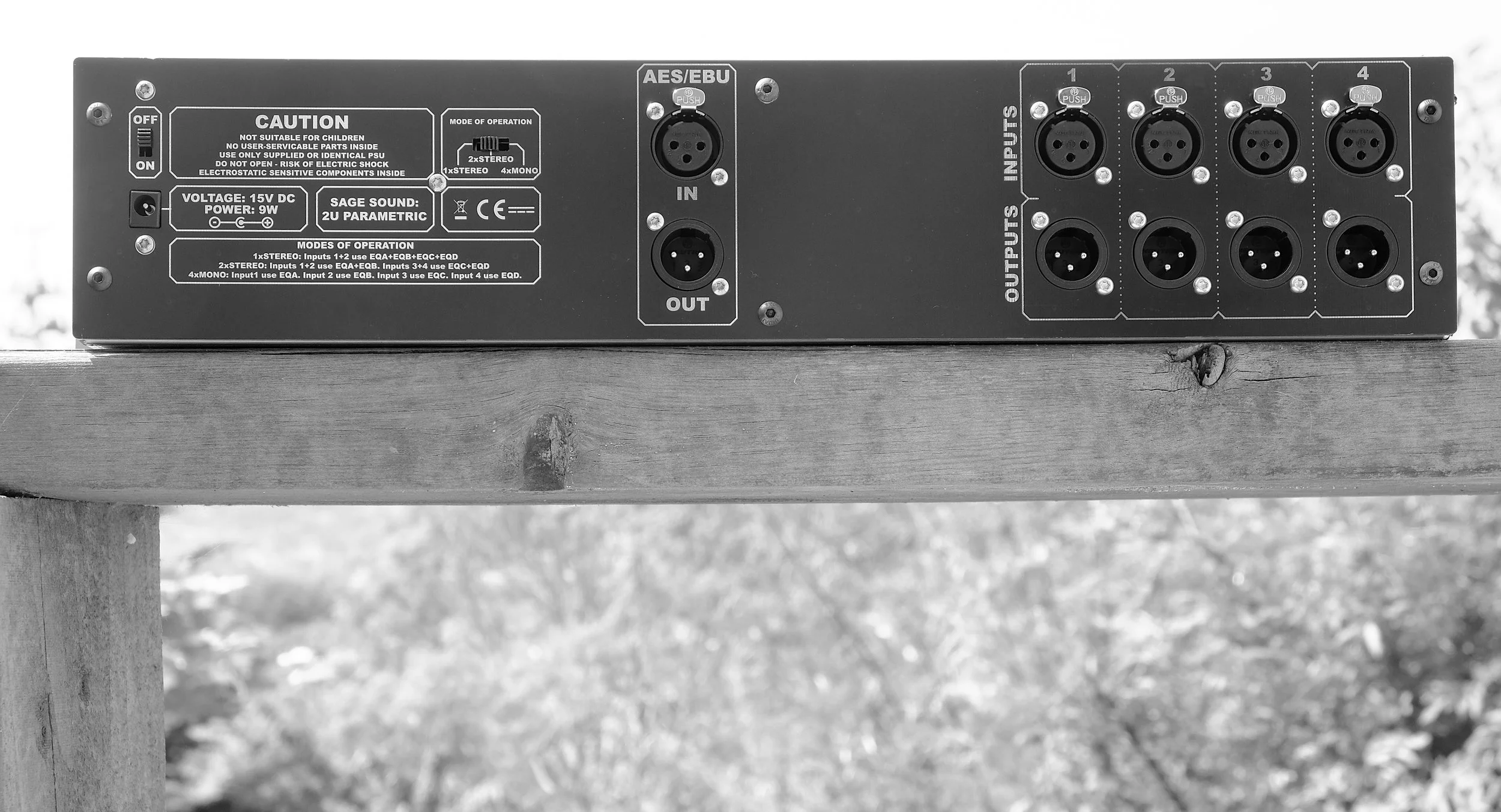

-Middle setting of mode switch on rear changes from 2xSTEREO to STEREO&MONO (Channels 3+4 can be linked in series with XLR cable to convert to 2xSTEREO if required).
